Build with confidence. Build with SSA.
American-made and fully customizable, our metal framing is produced at large scale using premium-grade raw materials and manufactured with strict dimensional precision for consistent, high-quality performance.
Stud
SSA Drywall Stud is a profile type that is applied vertically to provide support in partition wall systems. Manufactured from hot dipped galvanized coil.
Width options 1-5/8”, 2-1/2”, 3-1/2”, 3-5/8”, 4”, 6”, 8”, 10”Flange options 1-1/4”, 1-3/8”, 1-5/8”, 2”, 2-1/2”, 3”Thickness 25GA EQ-15mil, 20GA EQ-18mil, 25GA-18mil, 20GA-33mil, 18GA-43mil, 16GA-54mil, 14GA-68mil, 12GA-97mil
Track
- SSA Drywall Track is a profile type that is used for aligning Drywall Studs on the floor and ceiling in partition wall systems. Manufactured from hot dipped galvanized coil. Width options 1-5/8”, 2-1/2”, 3-1/2”, 3-5/8”, 4”, 6”, 8”, 10”
- Flange options 1-1/4”, 1-1/2”, 2”
- Thickness 25GA EQ-15mil, 20GA EQ-18mil, 25GA-18mil, 20GA-33mil, 18GA-43mil,16GA-54mil, 14GA-68mil, 12GA-97mil
U Channel
SSA Cold Rolled U Channel has a large number of uses ranging from cross furring in drop ceiling assemblies to mechanical bridging for stud walls. Manufactured from hot dipped galvanized coil.
Width options 1-1/2”, 2”, 2-1/2”Leg options 1/2“Thickness 16GA-54mil
Z Channel
SSA Z shaped metal framing used to level uneven wall and ceiling surfaces for the attachment of gypsum and flat wall board materials. Manufactured from hot dipped galvanized coil.
Heights options 1”, 1-1/2”, 2”, 2-1/2”, 3”Thickness 25GA-18mil, 20GA-30mil
Furring Channel
SSA Furring channel, also called hat channel, is a metal framing component used in construction to create a surface for attaching materials like drywall or insulation. Manufactured from hot dipped galvanized coil.
Heights option 7/8”Width option 2-3/4”Thickness 25GA EQ-15mil, 20GA EQ-18mil
Shaft Wall Stud
SSA Shaft Wall Stud, also referred to as a C-H Stud, is easy to connect with a J Runner to create a durable yet affordable shaft wall system. SSA also produces J Runner track.
Width option 2-1/2”, 4”Thickness 25GA-22mil, 20GA-33mil, 18GA-43mil
Utility Angle
SSA corner angle is a multipurpose galvanized angle used in dozens of framing applications. Some of the most common applications include lapped framing conditions, soffit framing, floor and ceiling runner, chase wall construction and laminated gypsum drywall partitions. Utility angles are used to connect, reinforce, or secure metal stud framing in various drywall applications. Manufactured from hot dipped galvanized coil.
Leg size options 1”x1”, 2”x2”, 3”x3”, 4”x4”, 3”x4”Thickness 25GA-18mil, 20GA-30mil
Corner Bead
Galvanized steel corner bead is made from corrosion resistant material that provides solid protection at drywall corners. The corner bead is designed with a straight screed for high-quality finishing. This traditional drywall product can be easily installed without specialized tools, it can be nailed, stapled, or screwed into place. The flanges are deeply knurled and perforated for excellent joint compound adhesion. Manufactured from hot dipped galvanized coil.
Leg size 1-1/4”x1-1/4”Thickness 13milLength 10’
.png)
RC-1 Resilient Channel
SSA RC-1 Resilient Channel used as cross furring members for resilient attachment of gypsum wallboard or lath on ceilings and partitions. It is one of the most effective, low-cost methods of improving sound transmission loss through wood and steel frame partitions.
Depth option 1/2”Width option 2-1/8”Thickness 25GA-18milLength 12’
Flat Stock
SSA Flat stock, also referred to as straps are available in multiple widths and in a full range of gauges. Flat straps are used for lateral bracing, joist bridging and diagonal bracing to prevent racking. Manufactured from hot dipped galvanized coil.
Width options 2”, 3”, 4”, 6”, 8”Thickness 20GA, 18GA, 16GA, 14GALength 10’
J BEAD
SSA Metal J-Trims are strong, reveal-type galvanized steel casings that provide maximum protection and neat finished edges to drywall terminations around door and window openings. Metal J-Trims also deliver a clean trim line at intersections or where gypsum panels abut dissimilar surfaces such as columns and window mullions. Hemmed-edges allow for quick installation and do not require joint compound for finishing. Manufactured from hot dipped galvanized coil.
Width options 1/2”, 5/8”Thickness 15milLength 10’
Slotted Track
SSA Slotted Track is a cost-effective deflection system engineered to deliver unparalleled flexibility. It facilitates swift, simple, and adaptable stud installations, offering enhanced convenience.Featuring pre-punched 1½” slots spaced at 1″ o.c. to accommodate any stud spacing,2½” leg height for increased strength and performance.
Width options 2-1/2”, 3-5/8”, 4”, 6”, 8”, 10”Flange options 2-1/2”, 3”Thickness 25GA-18mil, 20GA-33mil, 18GA-43mil,16GA-54mil, 14GA-68mil

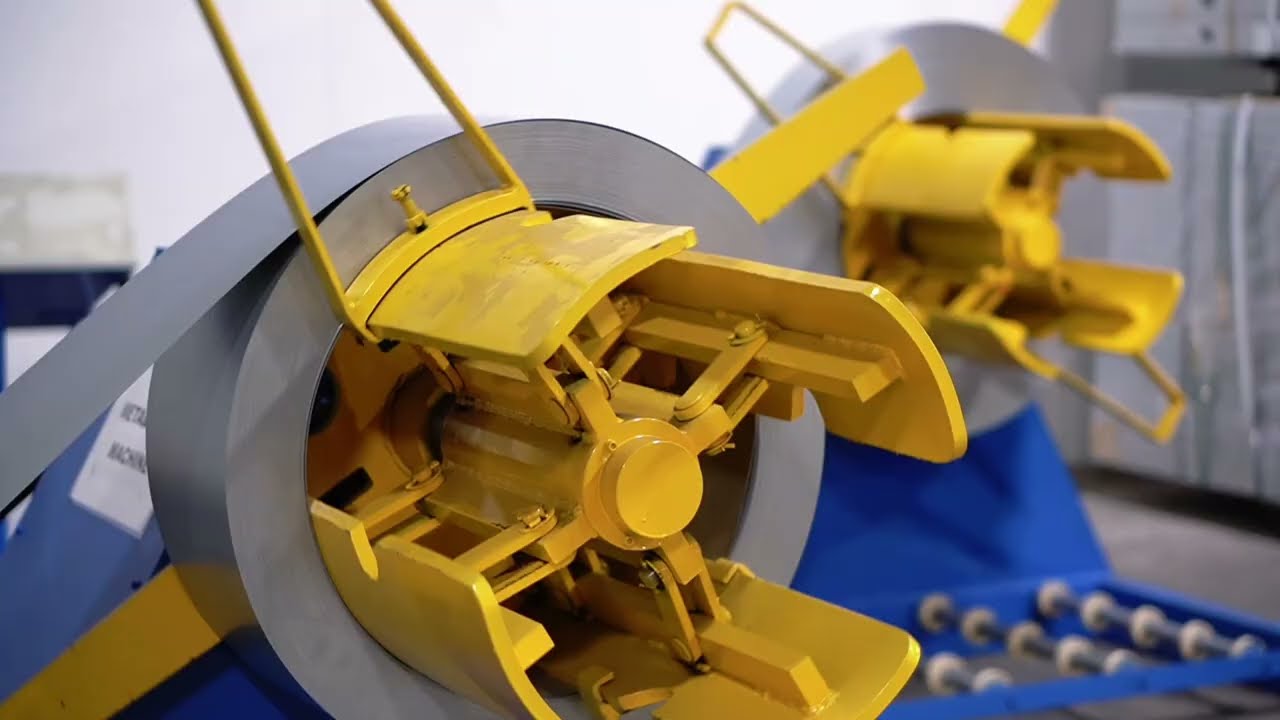

Production Video
Experience how SSA’s metal studs are made right here in the United States. Our manufacturing facility, located in Lemont, Illinois, produces high-precision framing products using premium-grade steel coils sourced from trusted U.S. suppliers. Every stud is roll-formed, inspected, and packaged in-house—ensuring consistent quality from start to finish. With an annual production capacity of over 100 million linear feet, our facility supports projects of every scale, from residential builds to large commercial developments. We also offer customizable gauges, lengths, and profiles, giving contractors and developers the flexibility they need to build with confidence.
